Cree WS Series

Cree WS Series

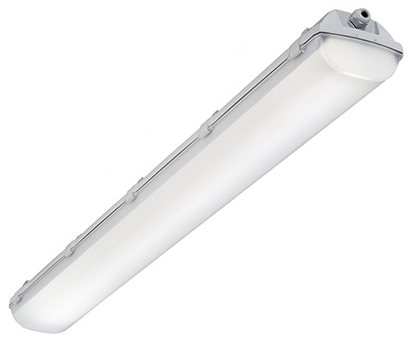

LED Wet Location Linear Luminaire

Technical Specifications & Documentation

The versatile Cree WS Series wet location linear luminaire is suitable for indoor and outdoor applications.One-piece molded polycarbonate housing.
Injection molded, impact resistant, UV stabilised polycarbonate shielding. Wet location listed and water-tight sealed for IP65 rating and protected from external elements.
The operating temperature range is -25˚C to 35˚C, for cold to hot weather environment installations.

• Cree LED Technology
• Delivered Light Output: 5100 lumens
• Efficacy: up to 100 LPW
• CRI: minimum 80
• Colour temperature: 3000 K, 4000 K
• Input Voltage: 220-240V
• Warranty: 5-year limited warranty
• Lifetime: designed to last 70,000 hours at 25°
• Dimensions: 1283 x 145 x 101 mm
• Weight: 3 kg

	WS Series Waterproof LED Linear Luminaire
	Click to download the spec sheet
	Click to download the IES files
	Click to download the WS Series brochure

17 September 2012

Cree LR22

Website Administrator

cree lr22

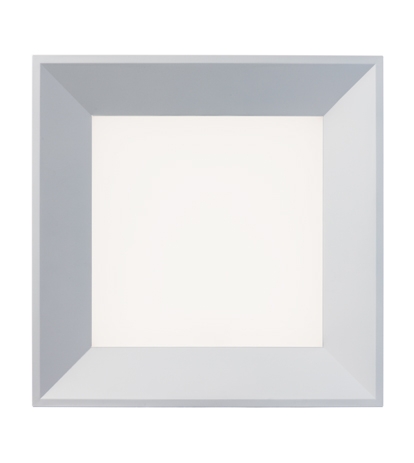

Cree LR22 (LED troffer 600mm x 600mm)

Technical Specifications & Documentation

The LR22 LED troffer blends seamlessly into any ceiling and offers soft, smooth, fully-luminous light, creating a quiet ceiling that keeps spaces bright and vibrant. The innovatively thin depth of the LR22 LED troffer easily accommodates narrow plenums and is ideal for both retrofit and new construction. The LR22 LED troffer delivers up to 3400 lumens of exceptional 90 CRI light. A variety of dimming and control options offer energy savings opportunity while providing a new level of flexibility that enables a more personal lighting experience.

• Utilizes Cree TrueWhite® Technology
• Efficacy: 95 LPW
• Delivered Light Output: 3400 lumens
• Input Power: 35 watts
• CRI: 90 CRI
• CCT: 3000K, 4000K
• Warranty: 10 years
• Lifetime: designed to last 50,000 hours
• Dimming to 5%
• Mounting: recessed

	LR22 LED Troffer
	Click to download the spec sheet
	Click to download the LR22 sales sheet
	Click to download the Photometric files (IES and LDT)

17 September 2012

Cree CXB Series

Website Administrator

CXB HighLowBay nkd

CXB1

The CXB Series LED high-bay and low-bay fixture with clear lens

CXB2

Clear Prismatic Drop Lens for Prismatic & Acrylic Reflectors

CXB3

Clear Cone Bottom Lens for Prismatic & Acrylic Reflectors

Cree CXB Series

Technical Specifications & Documentation

The CXB Series LED Low-Bay/High-Bay luminaire delivers 18,000 median and 24,000 median lumens with illumination performance to allow one-for-one replacement of 250W and 400W HID luminaires and multi-lamp fluorescent low-bay and high-bay fixtures. With exceptional rated lifetimes, zero restrike time and a compact lightweight construction, the CXB Series provides additional benefits of energy savings and significantly reduced relamp maintenance costs. The CXB Series is offered with reflector choices of aluminum, clear and white acrylic with optional bottom lenses — making it ideal for a variety of applications.

• Delivered Light Output: 18,000 or 24,000 median lumens
• Input Power: 155 or 230 Watts
• CRI: 80
• CCT : 4000K, 5000K
• Input Voltage: 220-240 VAC
• Limited Warranty: 10 years on luminaire
• Mounting: Pendant, hook, eye bolt
• Weight: Maximum 6.4kg

	Cree CXB Series LED High Bay / Low Bay luminaire
	Click to download the spec sheet
	Click to download the CXB Series sales sheet
	Click to download the Photometric files (IES and LDT)

17 September 2012

Cree FP22

Website Administrator

FP Range LTSS

Cree FP22 (LED troffer 600mm x 600mm)

Technical Specifications & Documentation

The fully luminous flat panel design of the FP Series transforms any space into a modern, visually comfortable environment with soft, balanced light. The remarkably thin 8.8mm depth of the FP Series flat panel easily accommodates narrow plenums or can be suspended for a more stylish look.

The FP Series LED flat panels deliver up to 3,400 lumens of highly efficacious 100 lumens per watt light with great color quality. The enhanced optics enable the FP Series to meet the strict low glare requirements, delivering <19 UGR for a more enhanced lighting experience.

Efficacy : Up to 100 LPW
Delivered Light Output: 3,200-3,400 lumens
Input Power: 34 watts
CRI: > 80
CCT: 3000K, 4000K
Lifetime: 50,000 hours L70 at 25˚
Mounting: Recessed or Suspended

	FP22 LED Troffer
	Click to download the spec sheet
	Click to download the sales sheet
