Cree CPY 250

Technical Specifications & Documentation

Slim, low profile, easy mounting from below the deck. Luminaire housing constructed of rugged cast aluminum with integral heat sink specifically designed for LED. Luminaire mounts directly to the canopy deck in a 51mm to 102mm round hole and is secured in place with self-sealing screws that provide water-tight seal. Suitable for use in single or double skin canopies with a minimum 102mm wide panels and a minimum 0.7mm canopy thickness. Direct imaging of LEDs is eliminated with high efficiency patterned flat or 23mm drop glass lens.

• Efficacy: up to 140 LPW
• Delivered Light Output: up to 20,000 lumens
• Input Power: 65 – 94 – 140 W
• CRI: 70
• CCT: 5700K (+ / – 500K) Standard, 4000K (+ / – 300K)
• Input Voltage: 220-240V, 50/60Hz
• Limited Warranty: 10 years on luminaire / 10 years on Colorfast DeltaGuard® finish

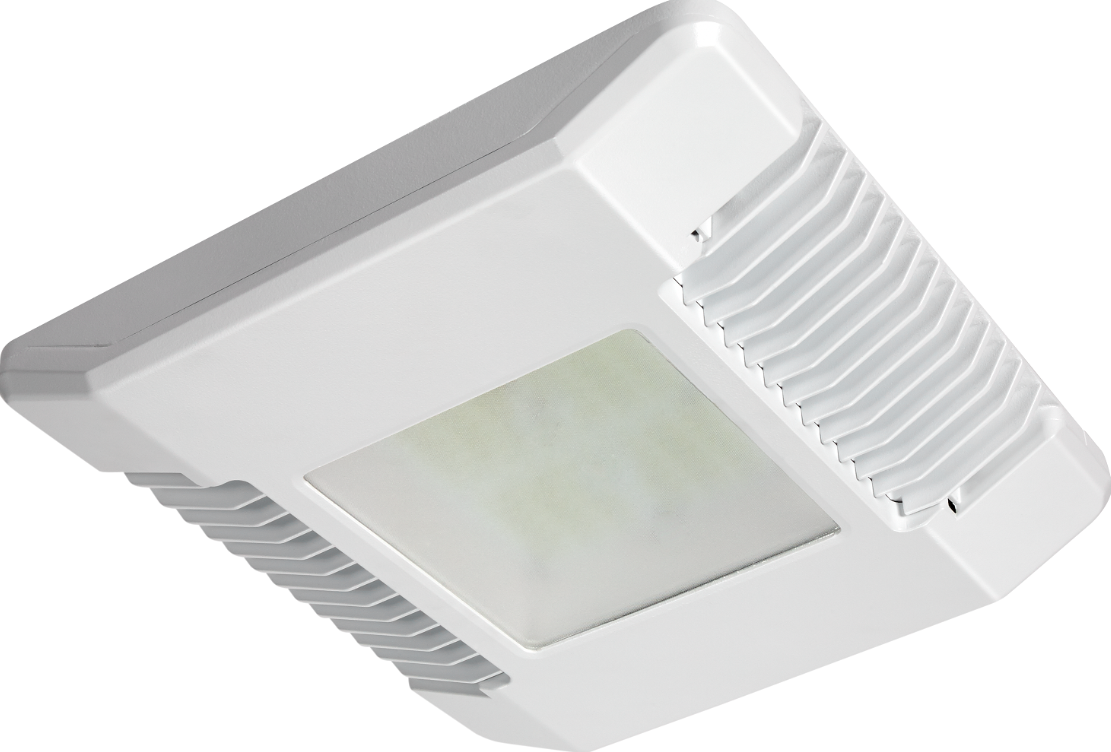

Flat Lens option

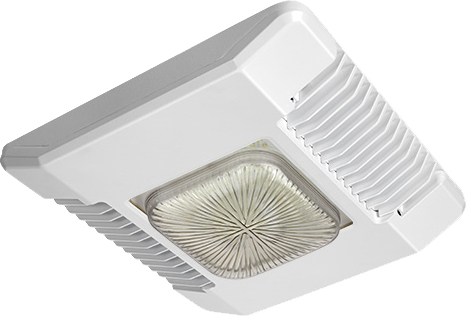

Drop Lens option

CPY250 Series, Flat Lens

CPY250 Series, Drop Lens

Recessed Retrofit frame

 CPY250 Series – Brochure

Photometric files (IES)

Lumen Maintenance Factor (LMF)
