Cree Edge HO (High Output)

Technical Specifications & Documentation

Cree Edge™ High Output luminaire is designed to deliver high lumen packages with precise optical control. Upgrade friendly unit features a slim, low profile design that minimizes wind load requirements.

Available with rugged die cast aluminum adjustable arm that mounts to a vertical 60-76mm O.D. minimum 95mm tall tenon, or with direct/surface mount to vertical or horizontal surfaces. Also, available with Cree TrueWhite Technology, the Cree Edge High Output helps to beautifully render true colors and deliver value beyond energy savings.

• Utilizes BetaLED Technology
• Utilizes Cree TrueWhite Technology on 5000K luminaires
• Patented NanoOptic™ Product Technology
• CCT: 5700K Standard, 5000K, 4000K
• Minimum 70 CRI (4000K & 5700K); 90 CRI (5000K)
• Adjustable Arm mount or Direct/Surface mount
• Standard color is Silver. Bronze, Black, White, and Platinum Bronze are also available
• Exclusive Colorfast DeltaGuard® finish

	Photometric files (Area lighting optics) (IES)		Photometric files (High Bay optics) (IES)
	NanoOptic™ Specification sheet for Optic selection below
	Lumen Maintenance Factor (LMF)

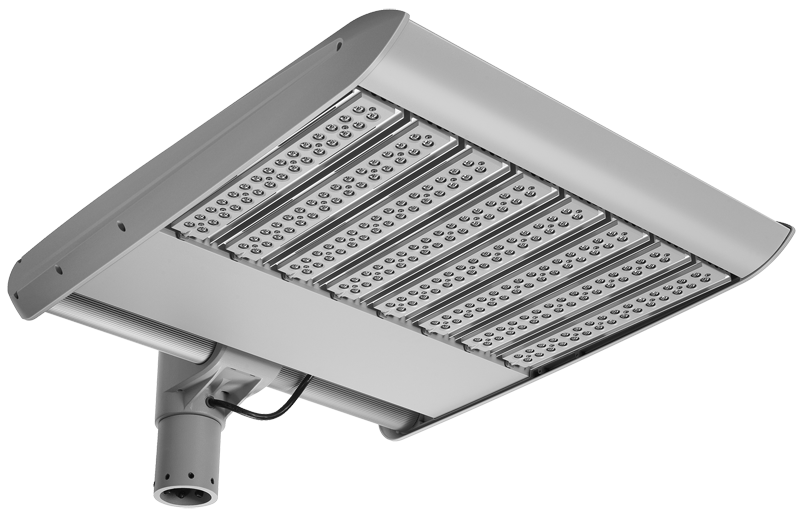

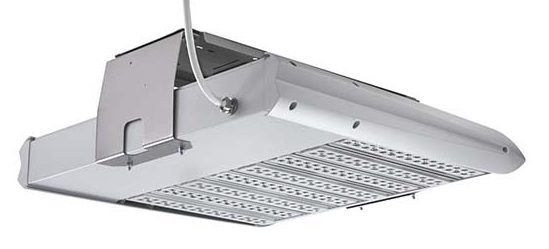

Adjustable Arm Mount Adjustable arm mounting to 60-76mm OD vertical tenon		Direct/Surface Mount Direct mount to 127mm or larger square poles or surface-mount		Surface/Direct Mount (High-Bay) T – High-Bay mounting system (Surface / Direct Mount)
	Optic 2 (TM / Type 2 Medium)		Optic 2 (TM / Type 2 Medium)		Optic 3 (PR / Type 3 Medium)
	Optic 3 (PR / Type 3 Medium)		Optic 3 (PR / Type 3 Medium)		Optic 5 (QV / Type 5 Medium)
	Optic 4 (AC / Type 4 Medium)		Optic 4 (AC / Type 4 Medium)		Optic A (N6)
	Optic 5 (QV / Type 5 Medium)		Optic 5 (QV / Type 5 Medium)		Optic F (TS / Type II Short)
	Optic A (N6)		Optic A (N6)		Optic R (QVS / Type V Short)
	Optic B (15°)		Optic B (15°)		Optic T (1S / Type I Short)
	Optic C (25°)		Optic C (25°)
	Optic D (40°)		Optic D (40°)
	Optic F (TS / Type II Short)		Optic F (TS / Type II Short)
	Optic G (TMB / Type II Medium w/Backlight Control)		Optic G (TMB / Type II Medium w/Backlight Control)
	Optic H (PRB / Type III Medium w/Backlight Control)		Optic H (PRB / Type III Medium w/Backlight Control)
	Optic J (ACB / Type IV Medium w/Backlight Control)		Optic J (ACB / Type IV Medium w/Backlight Control)
	Optic K (TSB / Type II Short w/Backlight Control)		Optic K (TSB / Type II Short w/Backlight Control)
	Optic Q (AF)		Optic Q (AF)
	Optic R (QVS / Type V Short)		Optic R (QVS / Type V Short)
	Optic T (1S / Type I Short)		Optic T (1S / Type I Short)
	Optic X (SN)		Optic X (SN)
	Optic Z (70°)		Optic Z (70°)
