Cree OSQ HO Series (High Output)

Technical Specifications & Documentation

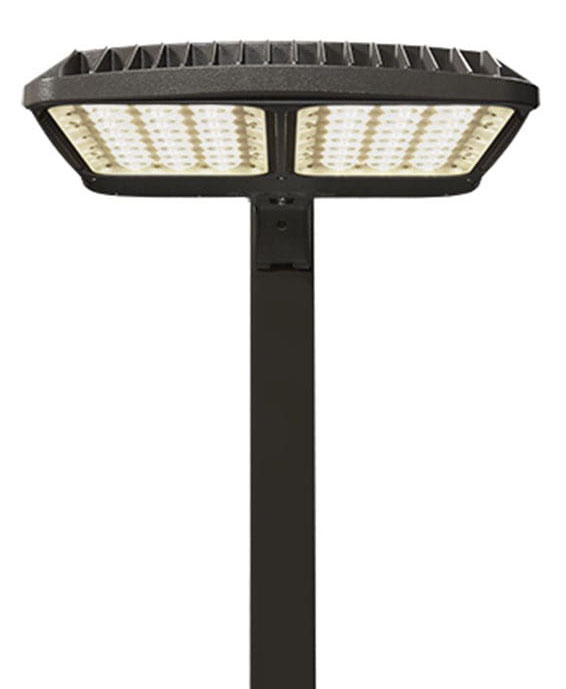

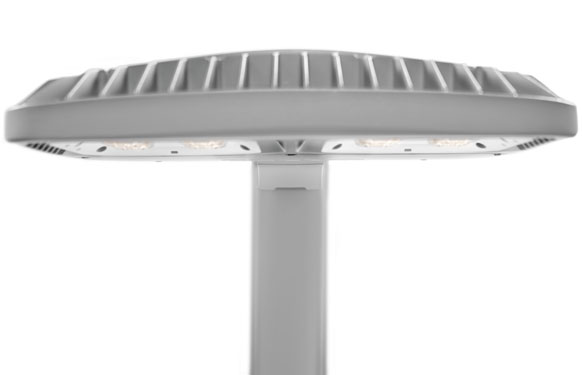

The OSQ High Output Area / Flood luminaire changes the standard for high output lighting. With high lumen output, one luminaire can replace multiple metal halide (MH) 1000W fixtures. The result is more than 80 percent energy savings at exceptional performance levels. Compared to other LED solutions, its smaller and lighter, making it easier to install while minimizing wind load requirements. Featuring TrueWhite® Technology, the OSQ Series High Output renders true-to-life colors with a Color Rendering Index (CRI) of 90+ and optical distributions that are optimized for automotive frontlines, large parking lots and high mast applications.

• Efficacy: Up to 169 Lm/W
• Delivered Light Output: 41674Lm – 80020Lm
• Input Power: 45L = 304W ; 65L = 533W
• CRI: CRI Standard min.70, CRI 80 @3000K on request
• CCT: 3000K, 4000K, 5000K, 5700K
• Limited Warranty: 10 Yrs

Cree OSQ Series HO (High Output)

OSQ Series HO brochure

OSQ Series HO Flood Photometric files (IES)

OSQ Series HO Area Photometric files (IES)
